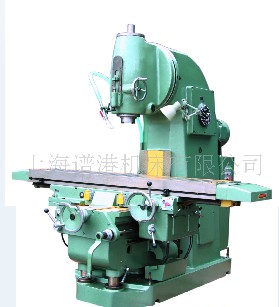

| 项目(Item) | X5042/X5042-L | X5042-W/X5042-LW | X5042-H2/X5042-H4 | |||||
| 工作台台面尺寸(宽×长) Table size(W×L) | 425×2000/425×2500* | 500×2000/500×2500* | 425×2000 | |||||
| T型槽(槽宽×数量×间距) | 18×3×90 | 18×3×90 | 18×3×90 | |||||
| 工作台最大承重Max load of table | 800kg | 800kg | 800kg | |||||
| 主轴端面至工作台台面距离(手动)Distance from spindle end-face to the table | 0~500mm | 0~500mm | 200~700/400~900mm* | |||||
| 主轴中心线至立柱导轨面距离Distance from spindle center to vertical guideway | 450mm | 450mm | 450mm | |||||
| 主轴锥孔Spindle nose taper | 50 7:24 | 50 7:24 | 50 7:24 | |||||
| 主轴转速范围Spindle speed | (20级)18~1400rpm | (20级)18~1400rpm | (20级)18~1400rpm | |||||
| 主轴上下调节行程Adjustment of spindle tube | 90mm | 90mm | 90mm | |||||
| 立铣头回转角Angles of vertical milling head | ± 45° | ± 45° | ± 45° | |||||
| 工作台纵向行程Y travel of the table | 1250/1600mm* | 1250/1600mm* | 1250mm | |||||
| 工作台横向行程X travel of the table | 400mm | 400mm | 400mm | |||||
| 工作台垂向行程Z travel of the table | 400mm | 400mm | 400mm | |||||
| 进给速度范围(纵向)Feed speed of the table(Longitudinal) | 10~1250mm/min | 10~1250mm/min | 10~1250mm/min | |||||
| 进给速度范围(横向)Feed speed of the table(Transverse) | 10~1250mm/min | 10~1250mm/min | 10~1250mm/min | |||||
| 进给速度范围(升降)Feed speed of the table(Vertical) | 2.5~315mm/min | 2.5~315mm/min | 2.5~315mm/min | |||||
| 主轴电机功率Spindle motor power | 11kw | 11kw | 11kw | |||||
| 机床外形尺寸(长×宽×高)Overall dimensions(L×W×H) | 2770×2530×2490/3270×2530×2490* | 2770×2530×2490/3270×2530×2490* | 2770×2530×2690/2770×2530×2890* | |||||
| 机床重量(Weight of machine) | 5110kg/5250* | 5160kg/5400* | 5510kg/5700* | |||||
