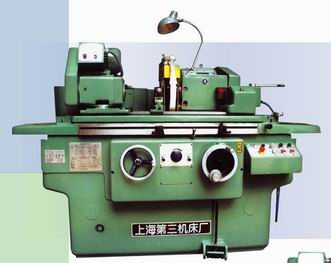

工作精度优良的精密磨床，适用于加工精密零件的具有稳定性能的精密万能外圆磨床。
规格及主要技术参数 Main Specifications
|
项目 |
Item |
MM1420A |
|
磨削直径范围 |
Grinding diameters |
8~200 mm |
|
磨削孔径范围 |
Gringing bores |
13～80 mm |
|
最大磨削长度 |
Max grinding length |
500 mm |
|
最大磨削深度 |
Max grinding depth |
125 mm |
|
工作台最大移动量 |
Max travel of table |
600 mm |
|
液压移动速度 |
Hydraulic traverse speeds |
0.1～4 m/min |
|
工作台转动范围 |
Swivel range of the table |
-5°～+9° |
|
砂轮最大线速度 |
Max peripheral speed of grinding wheel |
35 m/s |
|
最大砂轮直径 |
Max grinding wheel diameter |
300 mm |
|
头架主轴转速 |
Speeds of headstock spindle |
60,85,230 rpm |
|
电机总容量 |
Coolant pump drive motor |
4.24 kw |
|
机床外形尺寸（长X宽X高） |
Overall dimensions (LxWxH) |
2000X1420X1600 mm |
|
机床重量 |
Weight of machine |
2100 kg |
工作精度 Working Accuracy
|
项目 |
Item |
|
|
外圆圆度 |
Ex Ternal |
0.001 mm |
|
内孔圆度 |
In Ternal |
0.002 mm |
|
纵截面直径 |
Cylindricity |
0.005 mm |
|
外圆粗糙度 |
Ex Surface |
Ra≤0.04 mm |
|
内孔粗糙度 |
In Surface |
Ra≤0.04 mm |
Main Accessories主要附件
|
1 |
冷却液箱 Coolant tank |
1 set |
|
2 |
开式中心架 Open center rest |
1 set |
|
3 |
砂轮修整器 Grinding wheel dresser |
1 set |
|
4 |
砂轮夹板 Grinding wheel clamp |
2 sets |
|
5 |
砂轮平衡器 Grinding wheel balancer |
1 pc |
|
6 |
合金顶尖 Carbide-tipped center |
2 pcs |
|
7 |
半缺顶尖 Half center |
2 pcs |
|
8 |
桥板 Bridge plate |
1 pc |
|
9 |
夹头 Chuck |
1 set |
|
10 |
双头扳手 Double end werch |
6 pcs |
|
11 |
内六角扳手 Socket head screw wrench |
5 pcs |
|
12 |
六角套筒扳手 Hexagon socket wrench |
1 pc |
|
13 |
三角胶带 Vblet |
2 pcs |
|
14 |
支点底座 Support iron |
3 pcs |
|
15 |
松卸螺帽 Dismountingnut |
1 pc |
|
16 |
三爪卡盘 Three jaw chuck |
1 set |
|
17 |
闭式中心架 Closed center rest |
1 set |
|
18 |
内磨接长轴 Grinding wheel arbors for internal grinding |
4 sets |
|
19 |
多楔带 V-ribbed belt |
2 pcs |
|
20 |
平皮带 Flat belts |
2 pcs |
|
21 |
内磨遮板 Splash guard for internal grinding |
1 set |
|
22 |
其他附件 Other accessories |
| |
